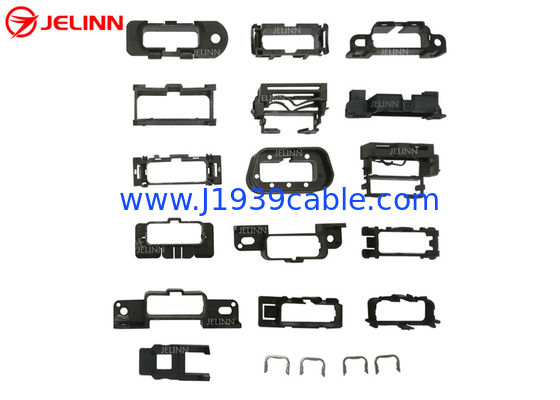

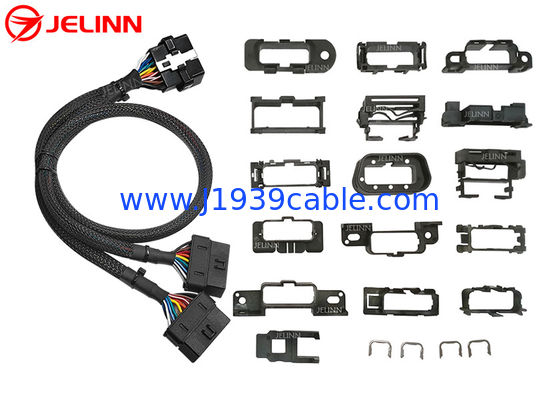

Universal OBD 2 J1962 OBDII Obd2 T-harness Splitter Spliter Y Cable With Multi Mounting Brackets for All Car Makes

Universal OBD 2 J1962 OBDII Obd2 T-harness Splitter Spliter Y Cable With Multi Mounting Brackets for All Car Makes


Specification

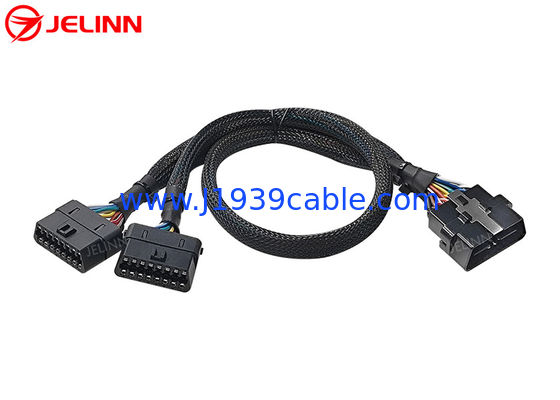

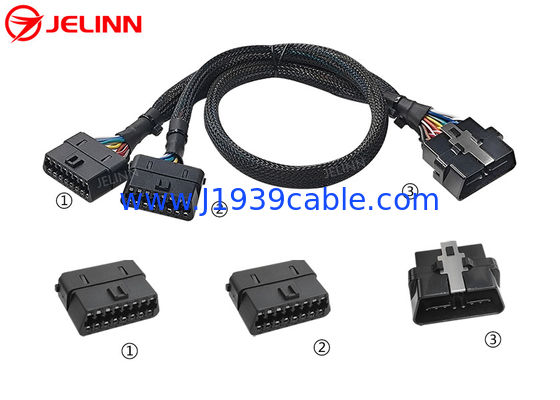

This is a Y cable with 3 ends of an OBD2 male plug, a replacement Volvo OBD2 female connector and a common OBD2 female connector.

There is a gap on the baffle in the middle of the OBD2 OBDII male plug. This kind of OBD2 male plug can be connected to OBD2 female ports of 24V/12V vehicles.

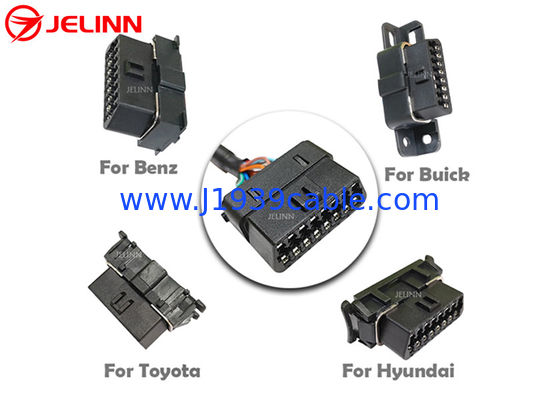

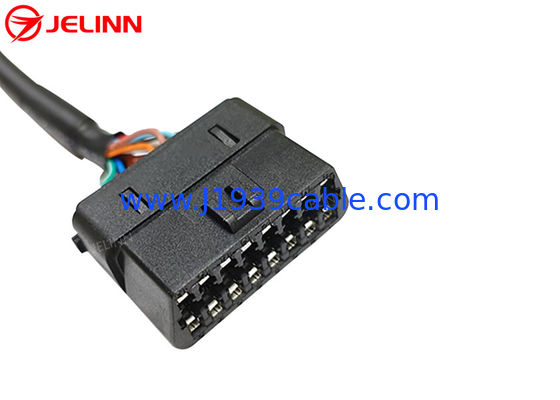

The common OBD2 OBDII J1962 female connector is with quality endurable KET terminals, which is more suitable for a test or diagnostic environment where the devices are plugged and unplugged frequently.

The overmolded plastic injection part at the ends of 16-Pin OBD2 OBDII female and male connectors makes the cable come out straight.

We can make different overmolds for the ends of OBD2 OBDII female and male connectors. If you don’t like the overmolds at the ends of OBD2 OBDII female and male connectors as shown in the pictures or you would like to have your own overmold with your company’s logo or you have special application requirements, we can and we have the ability to make a new overmold for you with reasonable charge. Moreover, we can even make it for free as long as the order quantity is 5000 pcs or more.



Pin assignment or pin out

The pin assignment or pin out can be like this:


As to this pin out, the black wires in both round cables is connected to Pin 4 of of the OBD2 OBDII male and female connectors. There are 8 pins wired, so there are 8 wires of 26AWG in the round cable from OBD2 male plug to common OBD2 female connector. All 16 pins of OBD2 male plug to Volvo female connector are wired, so there are 16 wires of 26AWG in the cable from OBD2 male plug to Volvo OBD2 female connector.

The pin assignment or pin out can also be like this:

As to this pin out, all 16 pins of the OBD2 OBD male and female connectors are wired, so there are 16 wires of 26AWG in both round cables.

The pin assignment or pin out can also be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need and the price can be lower because the raw material and labor cost is lower.


Application

This Y cable is used to connect telematics, IoV (Internet of Vehicles) devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' OBD2 female diagnostic ports.

This OBD2 OBDII Y Cable allows port relocation or connection of multiple telematics or IoV devices. Take the original Volvo OBD2 female diagnostic port off its original location with tools if necessary and then insert the OBD2 male plug at the end of this OBD2 Y cable into the original Volvo OBD2 female diagnostic port. Install the replacement Volvo OBD2 female connector at one end of the Y ends back to the original location of the OBD2 female diagnostic port in the car. Then you can connect a telematics or IoV device to the common OBD2 female connector at the other end of the Y ends. You can also connect another telematics or tuning device to the OBD2 female connector which was installed at the original location or leave this OBD2 female connector available for diagnostic use in the future. If you leave replacement Volvo OBD2 female connector available and then hide the telematics or IoV device connected to the common OBD2 female connector, then nobody would know that you have installed these devices without opening the panel.

This cable can also be used to connect OBD2 diagnostic devices or scanners or fault code readers.


Sending an inquiry

If you haven’t found or don’t have time to look for the OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
